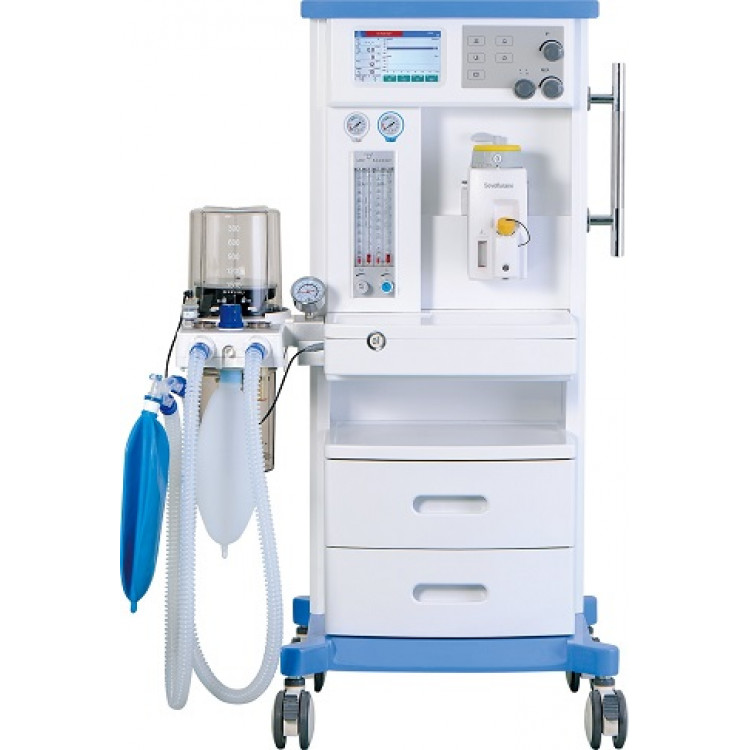

S6100D Anesthesia System

TECHNICAL SPECIFICATION
Flowmeter
Rapid oxygen supply
Tidal volume (Vt)
Frequence
I:E
PEEP
Pressure triggering sensitivity (Ptr）
Flow trigger sensitivity （Ftr）
SIGH
Apnea ventilation
Pressure limit
O2 (0.1～10 L/min)
N2O (0.1～10 L/min)
25 L/min～75 L/min
0, 20 mL～1500 mL
1 /min～100 /min
2:1～1:6
0 cmH2O～30 cmH2O
-20 cmH2O～0 cmH2O (Based on PEEP)
0.5 L/min～30 L/min
0 (off) 1/100～5/100
OFF，5s～60s
20 cmH2O～100 cmH2O
Ventilator parameter range
Frequence
Tidal volume (Vt)
MV
Oxygen concentration
0 /min～100 /min
0 mL～2000 mL
0 L/min～100 L/min
15 %～100 %
Monitoring parameter
P-T (pressure – time)
F-T (flow – time)
Oscillogram
Gas source
Pressure
Voltage
Power frequency
O2, N2O
280 kPa～600 kPa
100～240V
50/60 Hz
Working condition
Wooden case packing size
G.W.
N.W.
L 740* W 800* H 1460mm
98KG
66KG
Packing size
IPPV, A/C, SIMV, SIGH, MANUAL
Ventilation mode
,
ADULT · PEDIATRIC Friendly Powerful Reliable
The AC power failure alarm
Low voltage alarm for back up battery
No tidal volume
High oxygen concentration alarm
Low oxygen concentration alarm
High airway pressure alarm
Low airway pressure alarm
High minute volume alarm
Low minute volume alarm
Continuous pressure alarm
Suffocation warning
The maximum limited pressure
Fan error
Oxygen deficit
Power failure or no connection
＜11.3±0.3V
≤5mLwithin 6s
19%～100%
18%～99%
20 cmH2O～100 cmH2O
0 cmH2O～20 cmH2O
Adult (5 L/min～20 L/min)
Paed (1 L/min～15 L/min)
0～10 L/min
(PEEP+1.5 kPa) over 16s
5s～60s no spontaneous ventilation
＜12.5 kPa
Show on screen
Show on screen
