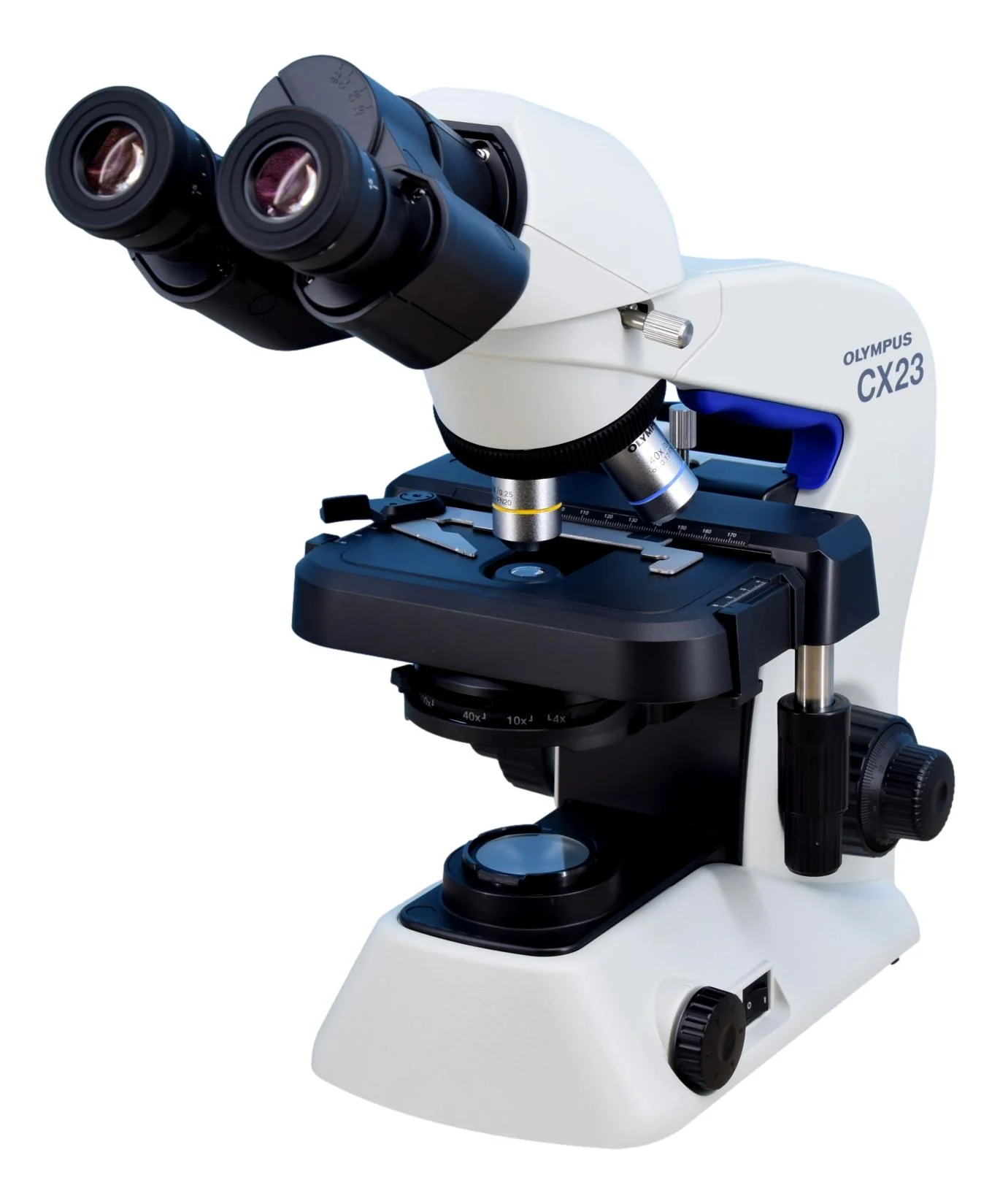

Olympus CX23 Microscope

Key Features and Specifications

• Optical System:
  Infinity optical system that provides clear, bright, and high-contrast images across the entire field of view.

• Eyepieces:
  Standard 10× widefield eyepieces with a field number of 20, providing a wide and comfortable viewing area.

• Observation Head:
  Binocular viewing head inclined at 30°, with an interpupillary distance adjustable from 48 mm to 75 mm. The diopter adjustment allows easy focusing for individual users.

• Objectives:
  Equipped with Plan Achromat objectives that are anti-fungal coated for longevity.

  • 4× (NA 0.10, working distance 27.8 mm)

  • 10× (NA 0.25, working distance 8.0 mm)

  • 40× (NA 0.65, working distance 0.6 mm)

  • 100× oil immersion (NA 1.25, working distance 0.13 mm)

• Stage:
  A mechanical, rackless stage with X-Y coaxial controls for smooth slide movement. The travel range is approximately 76 mm (X) × 30 mm (Y). Its rackless design increases safety and prevents snagging during use.

• Condenser:
  Abbe condenser (NA 1.25) with an adjustable iris diaphragm for proper light control and optimal image contrast.

• Illumination:
  Built-in long-life LED illumination that provides bright, uniform lighting with daylight color balance. It consumes very little power and requires minimal maintenance, ideal for continuous use in classrooms and labs.

• Focusing Mechanism:
  Coaxial coarse and fine focus knobs on both sides of the microscope. The coarse focus travel distance is about 15 mm, and the fine adjustment allows for precise focusing down to 2.5 micrometers.

• Body and Build:
  The frame is made from die-cast aluminum, ensuring rigidity and long-term durability. The optical components are treated with anti-fungal coatings, making the CX23 suitable for use in humid or tropical environments.

• Ergonomic Design:
  Compact, lightweight, and easy to handle. Includes a built-in carrying handle, a power cord storage compartment, and an anti-theft slot for secure use in shared environments.

• Weight:
  Approximately 5.9 kilograms, making it portable and easy to move between classrooms or laboratories.
