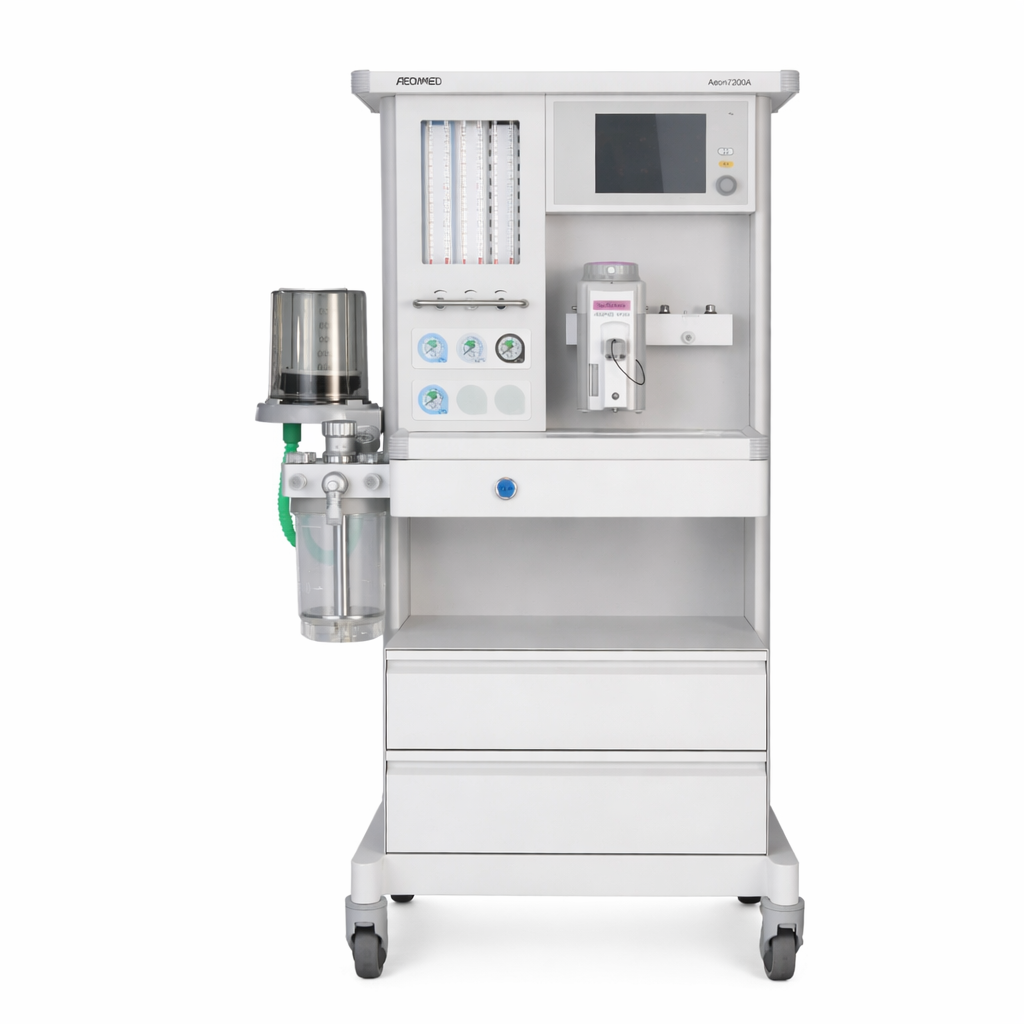

Aeon7200A Anesthesia System

ual,
PS/CPAP (with apnea backup), Standby
• Setting: Navigator knob & touchscreen
• Tidal volume: 20~1500ml
• Ventilation frequency: 2~100bpm
• I:E ratio: 4:1~1:8
• Electronic PEEP: OFF, 3~30cmH2O
• Inspiratory plateau: OFF, 5~60%
• Flow trigger: 1~15L/min
• Pressure range: 5~70cmH2O
• Pressure support: 3~50cmH2O
• Ventilation Monitoring: Pressure: Ppeak, Pplat, Pmean, PEEP
Volumes: MV, Vt
Respiratory frequency
Compliance, etc.
• Gas Monitoring: O2, CO2, Agent (All optional)
• Graph display(basic config): P-t, F-t, V-t waveforms
• Graph display(full config): P-t, F-t, V-t waveforms,
P-V and F-V loops
• Alarm: High/Low Airway Pressure
High/Low Minute Volume
High/Low FiO2 (when FiO2 function is enabled)
Power failure, O2 Supply failure, Apnea, etc.
• Alarm Silence: ≤120 s
• Patient type: Adult, pediatric
• Ventilation modes(basic config):
IPPV, PCV, SIMV-VC, Manual,
PS/CPAP (with apnea backup), Standby
• Support 2 vaporizers (Selectatec® with interlock)
• Optional additional 1 vaporizer holder
• Agent type: Halothane, Enflurane, Isoflurane, Sevoflurane
• Filling type: Pour-fill, Key-fill, Quik-fil®
Vaporizer
Technical Specications
Ventilator Specifications
Electrical Specifications
• Mains: AC 100~240V, 50/60Hz
• Battery: DC 24V, minimum 120min
• Mains outlet: 3
• Gas supply: 0.28~0.6MPa
• Flowmeters(basic config): O2: 0~1L/min; 1~10L/min
N2O: 0~1 L/min; 1~10L/min
• Flowmeters(Full config): O2: 0~1L/min; 1~10L/min
N2O: 0~1 L/min; 1~12L/min
Air: 0~1 L/min; 1~15L/min
• Gas system: O2 supply failure alarm
O2 supply failure protection
O2 flush: 25~75L/min
• Working mode: Closed, Semi-closed, Semi-open
• Driven mode: Pneumatically driven and electronically controlled
• Safety valve: ≤10kPa
• Operating mode: Man. / Vent.
• Cylinder yokes: Optional
Pneumatic Specifications
• Dimensions(H×W×D): 1356×845×620mm
• Weight: 110kg (Basic unit)
• Storage temperature: -20~55℃
• Working temperature: 10~40℃
• Storage humidity: ≤93%
