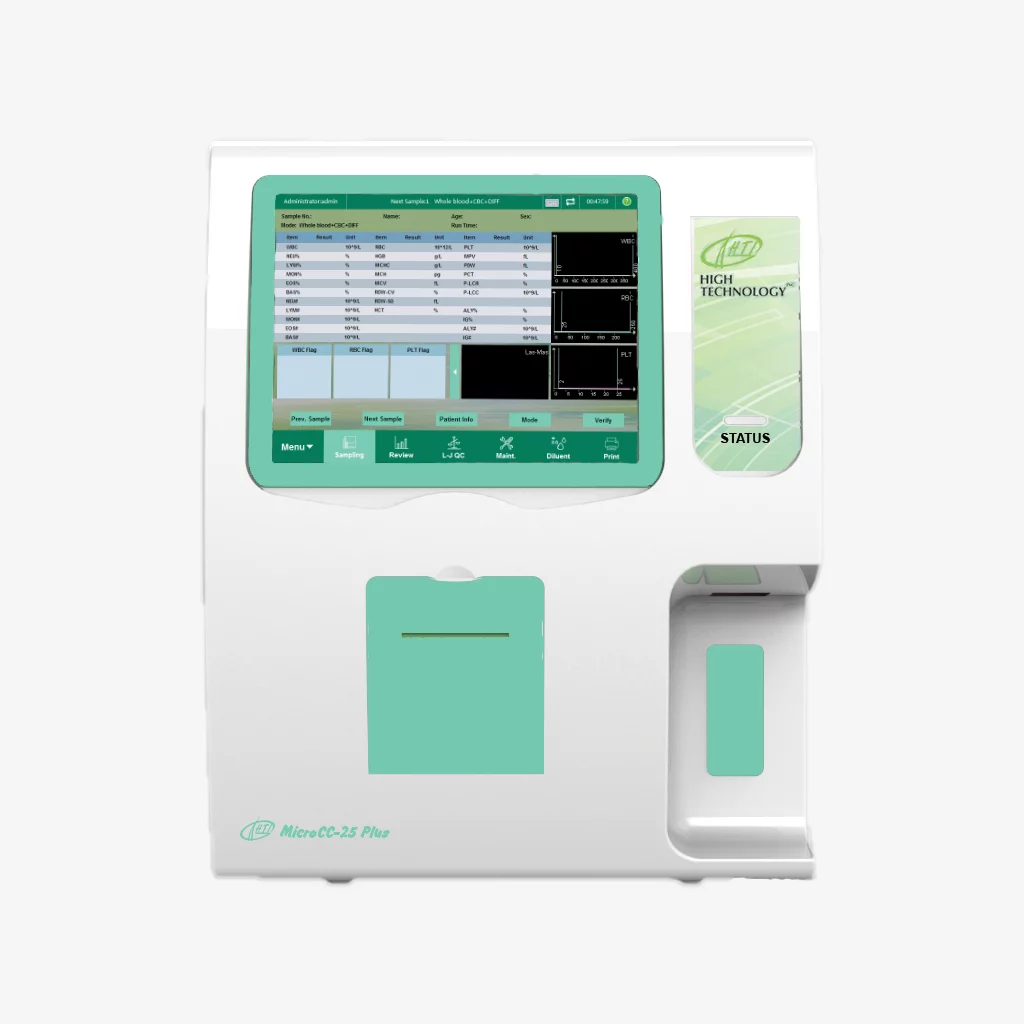

5- Part Hematology Analyzer Micro CC-25 Plus

Key Specifications & Features

Throughput:

• Processes approximately 60 samples per hour.

Parameters Measured:

• Around 25 hematology parameters, including:

  • WBC total and differential counts (LYM#, LYM%, MON#, MON%, NEU#, NEU%, EOS#, EOS%, BASO#, BASO%)

  • RBC, Hemoglobin (HGB), Hematocrit (HCT)

  • Red cell indices: MCV, MCH, MCHC

  • Platelet indices: PLT, MPV, PDW, PCT, P-LCR, P-LCC

  • Additional parameters may include immature granulocytes (IG#) and ALY#.

Sample Volume & Types:

• Whole blood: ~15 µL per test

• Prediluted sample: ~20 µL

• Supports manual sample tubes and open cups with retractable sample probe

Measurement Principles:

• WBC 5-part differential: Laser scatter method

• Hemoglobin: Photometry

• RBC and Platelet counts: Electrical impedance method

Software & Connectivity:

• 10.4-inch color touchscreen display with menu navigation and virtual keyboard

• Memory storage of up to ~100,000 results

• Connectivity: USB ports, Ethernet (RJ-45), bidirectional LIS interface

• Built-in thermal printer for immediate report generation

Physical & Environmental Specifications:

• Dimensions: ~47 cm (width) × 52.5 cm (height) × 36.5 cm (depth)

• Weight: ~35 kg

• Power supply: 110–240 V, 50/60 Hz, ~400 VA

• Operating environment: Temperature 10 °C–30 °C, humidity ≤85%

Reagents & Maintenance:

• Uses three main reagents: Diff Lyse, Hgb Lyse, and Diluent, plus a Cleaner Concentrate

• Daily maintenance is minimal; designed for ease of use in clinics or smaller labs
